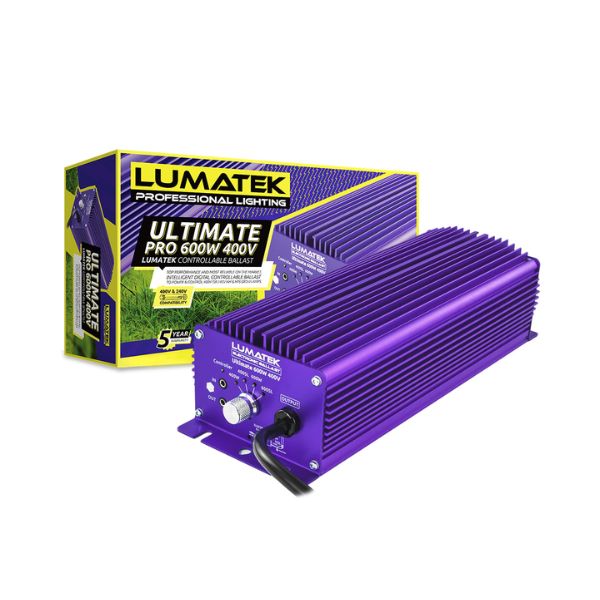

Lumatek Ultimate Pro 600W 400V Controllable Ballast
The Lumatek Ultimate Pro 600W 400V Controllable Ballast is engineered to provide professional growers with advanced lighting control and efficiency. Designed to power both 240V MH/HPS and 400V HPS horticultural lamps, this ballast automatically detects the connected lamp and optimizes performance accordingly. Its high-frequency operation and controllable features make it a versatile choice for various cultivation environments.
Specifications
- Product Code: LUMBC003
- Input Current: 2.9A
- Input Power: 630W
- Operating Frequency: 120KHz (Ultra-High Frequency)
- Efficiency: 95%

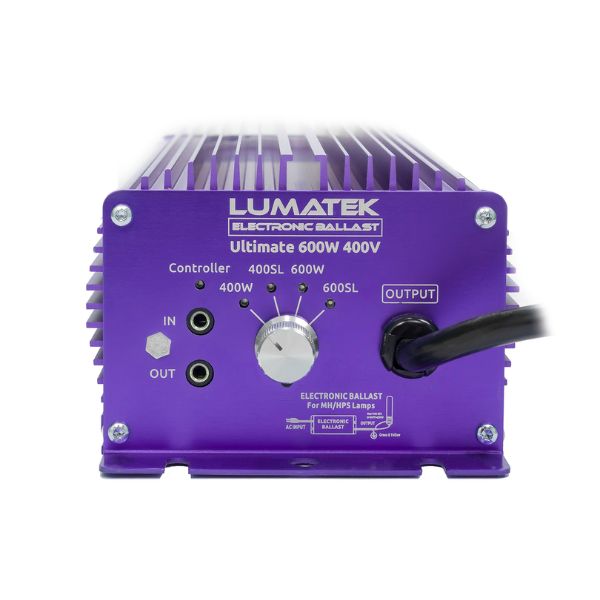

- Dimming Options: 400W, 400WSL (Super Lumens), 600W, 600WSL
- Weight: 3.0 kg
- Dimensions: 310 mm x 114 mm x 81 mm
- Voltage Range: 175V to 275V
- Power Factor: 0.99
- Total Harmonic Distortion (THD): <7%
- Protection Features: Open/short circuit, over-temperature, over/low voltage, end-of-lamp-life rectification, EMI suppression
- Certification: CE
Features of Lumatek Ultimate Pro 600W 400V Controllable Ballast
- Automatic Lamp Detection: Identifies and powers both 240V MH/HPS and 400V HPS lamps.
- High-Frequency Operation: Operates at 120KHz for 400V lamps and 90KHz for 240V lamps, ensuring efficient performance.
- Controllable via Digital Controller: Compatible with the Lumatek Digital Panel (sold separately) for advanced monitoring and control.
- Soft Start Technology: Gradually increases power to protect lamp longevity.
- Random Start Technology: Prevents electrical surges by staggering start times when multiple ballasts are used.
- Full Circuit Protection: Safeguards against various electrical issues to ensure reliable operation.
- Silent Operation: Designed to operate without generating noise.
- LED Status Indicator: Provides real-time operational status for easy monitoring.
Applications
- Commercial Greenhouses: Provides adaptable lighting solutions for large-scale cultivation.
- Indoor Grow Rooms: Offers precise control over lighting conditions for optimized plant growth.
- Horticultural Research Facilities: Enables controlled experiments with various lighting scenarios.
- Hydroponic Systems: Integrates seamlessly to support soilless cultivation methods.
FAQ
What types of lamps are compatible with this ballast?
It supports both 240V MH/HPS and 400V HPS horticultural lamps.
Can I control this ballast remotely?
Yes, it is compatible with the Lumatek Digital Panel (sold separately) for remote monitoring and control.
What does the ‘Super Lumens’ (SL) setting do?
The SL setting provides approximately a 10% boost in output, enhancing light intensity.
Is the ballast protected against electrical issues?
Yes, it features full circuit protection, including safeguards against open/short circuits, over-temperature, over/low voltage, and end-of-lamp-life rectification.
