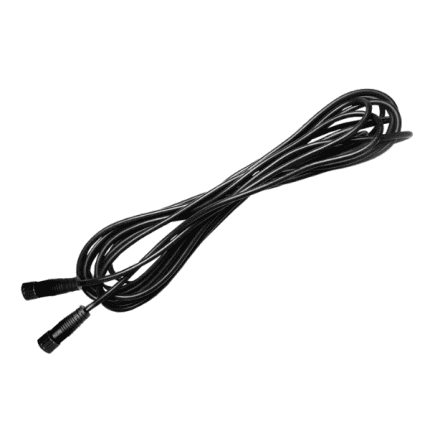

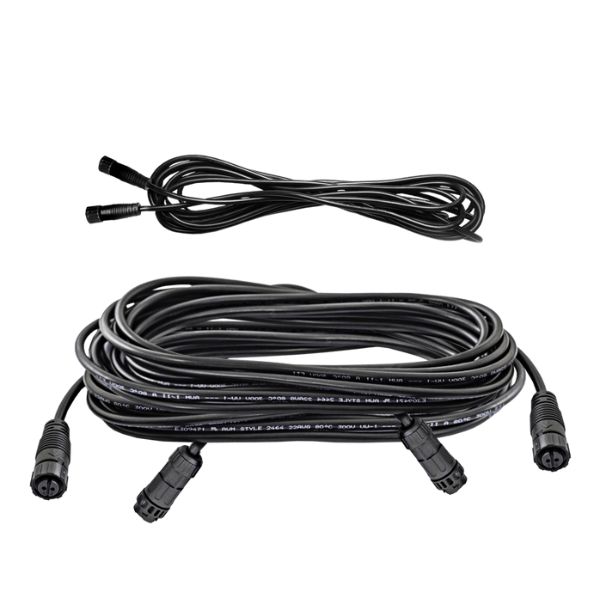

Lumatek 5m Driver Extension Cables for Zeus 1000W Xtreme
The Lumatek 5m Driver Extension Cables are designed to connect the Lumatek driver to the Zeus 1000W Xtreme LED fixture when the driver is mounted remotely. These cables ensure a stable and precise connection without interference, allowing for flexible installation and optimal performance.
Specifications
- Product Code: LUMM0031
- Components:
- 2 x 5m Extension Power Cables for LED driver
- 1 x 5m Extension Dimming Cable
- Power Cable Details:
- Connector Type: M19-2 self-locking male and female injection molding
- Wire Gauge: UL SJTW 2x16AWG 300V 105℃
- Withstand Voltage: 500 VAC, 2mA, test time 3S
- Insulation Resistance: 100MΩ@100V
- Temperature Resistance: 105℃
- Working Temperature: -20℃ to 105℃
- Storage Temperature: -25℃ to 105℃
- IP Rating: IP65
- Compliance: RoHS
- Dimming Cable Details:
- Connector Type: M19-2 self-locking male and female injection molding
- Wire Gauge: UL 21996 3×22AWG 300V 105℃ VW-1
- Withstand Voltage: 500 VAC, 1mA, test time 3S
- Insulation Resistance: 100MΩ@100V
- Temperature Resistance: 105℃
- Working Temperature: -20℃ to 105℃
- Storage Temperature: -25℃ to 105℃
- Compliance: RoHS
Features of Lumatek 5m Driver Extension Cables for Zeus 1000W Xtreme
- Extended Reach: Provides an additional 5 meters of length, allowing for flexible driver placement away from the LED fixture.
- Secure Connections: Equipped with M19-2 self-locking connectors to ensure stable and precise connections without interference.
- Durable Construction: Built with high-quality materials to withstand various environmental conditions, rated IP65 for dust and water resistance.
- Easy Installation: Designed for straightforward setup, facilitating quick and efficient installation.
- RoHS Compliant: Meets environmental and safety standards for hazardous substances.
Applications
- Remote Driver Mounting: Position the driver away from the LED fixture to reduce heat and improve space management.
- Commercial Grow Operations: Suitable for large-scale horticultural setups requiring flexible equipment placement.
- Indoor Gardening: Perfect for home growers looking to optimize their grow space by relocating drivers.
- Greenhouse Lighting Systems: Enhances the versatility of lighting configurations in greenhouse environments.
FAQ
What does the package include?
The package contains two 5m extension power cables and one 5m extension dimming cable.
Can I use these cables with other Lumatek LED fixtures?
These cables are specifically designed for the Zeus 1000W Xtreme LED fixture. Lumatek does not guarantee compatibility with other models.
What is the IP rating of these cables?
The cables have an IP65 rating, which protects them from dust and water jets.
Are these cables suitable for outdoor use?
Yes, their IP65 rating makes them suitable for outdoor use as long as you don’t submerge them in water.
Do these cables need professional installation?
No, you can easily install these cables without professional assistance.
